| Feature |
Specification |
| Paper Cup Size |
maximum 1400ml |
| Raw Material |
Single and double coated paper |
| Speed |
70-90 pcs/min |
| Suitable paper weight |
160-350g/?;±20g/? |
| Voltage supply |
380V(220V) 50HZ three phase |

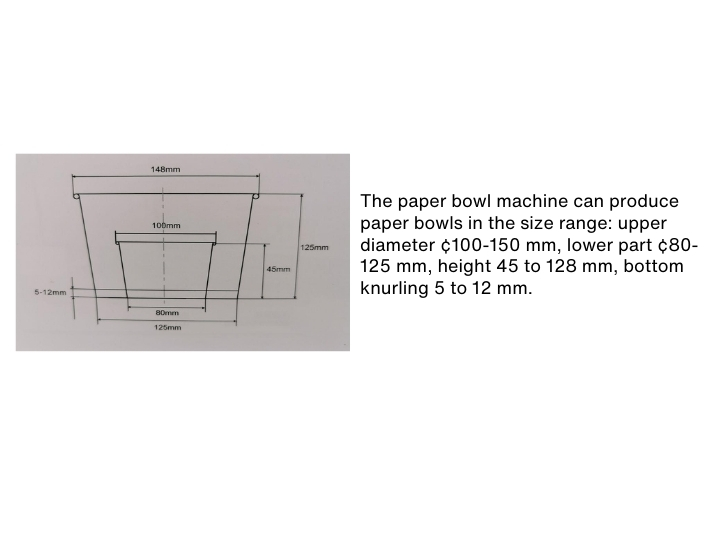

| Cup size |
80-125mm bottom, 100-148mm upper diameter, 125height |
| Working Air Source |
0.6-0.8MPa,0.4m³/min |
| General power |
12kw |
| Net weight |
3100Kg |
| Measurement (mm) Main Machine |
Length: 2350mm: Width: 1320mm; Height: 1900mm |
| Measurement (mm) Collecting Bo |
Length: 900mm,Width: 800mm, Height: 1500mm |
| Cup Side Sealing |
EVERGREEN Ultrasonic |
| Bottom Knurling |
hot air |
