SSP HP 1200 Die High Speed Roll Die Cutting, Creas

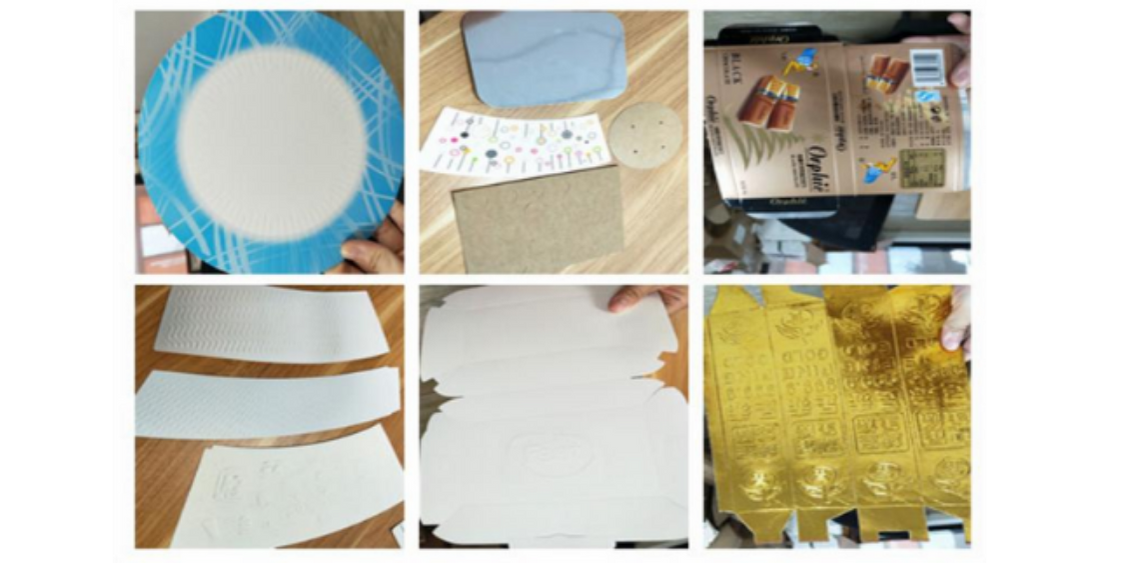

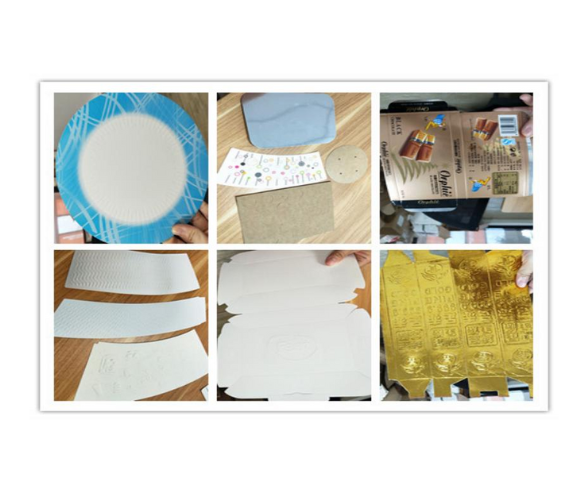

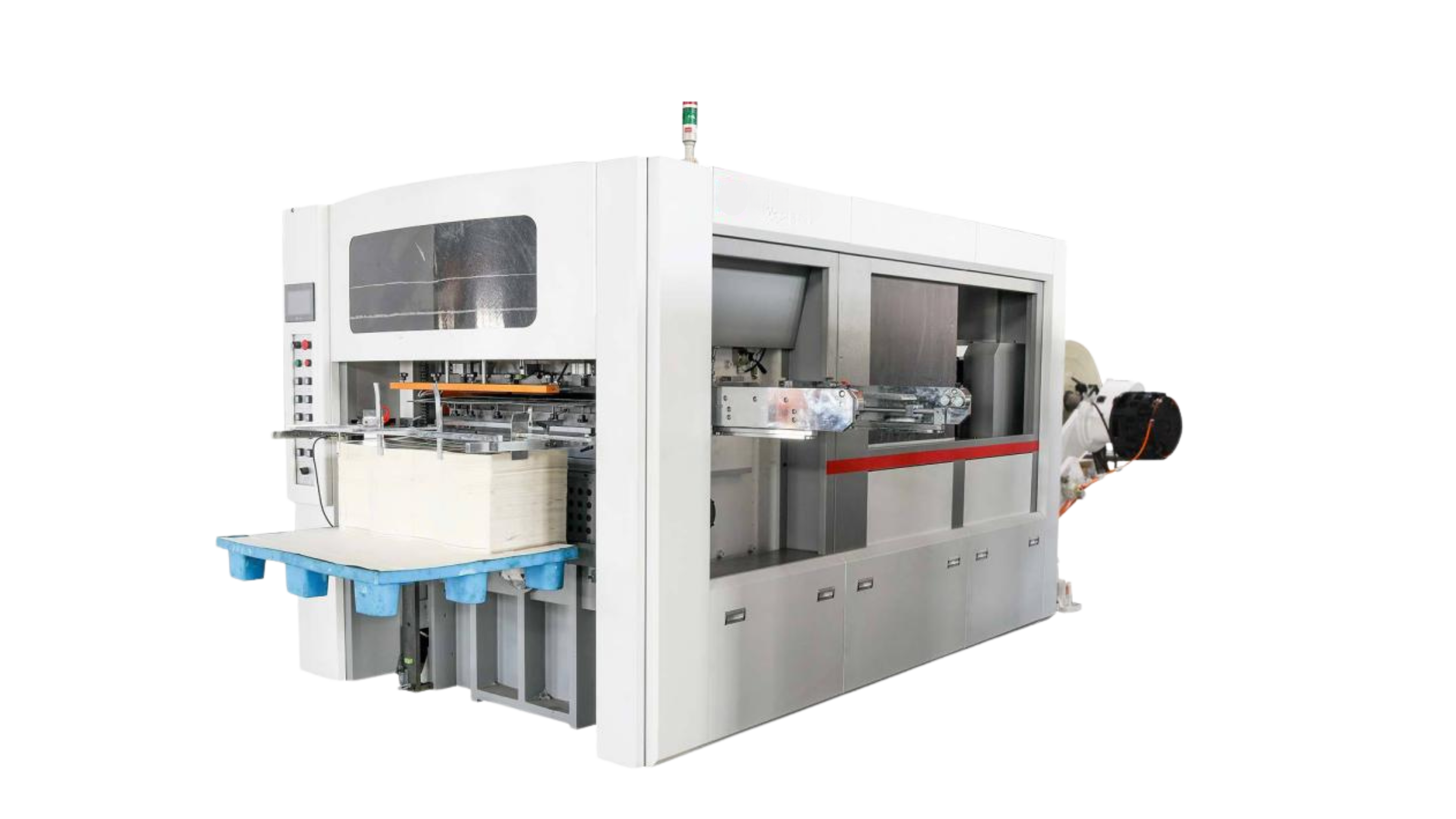

SSP HP 1200 Die is an ideal and professional machine in die-cutting,,creasing, embossing and full-stripping various PE coated paper, normal paper, corrugating paper and plastic material. It applies to paper cup, paper box, medical package, wine package, food package and other environmental protection products. It adopts micro-computer, HMI, servo positioning, alternating current frequency converter, automatic counting, photoelectric rectifying, and pneumatic lock cutting plate, electromagnetic clutch, centralized oil lubrication, overload protection and distinctive gearing. All of these is the guarantee of steady pressure, precise positioning, smooth running, safety and reliability operation.

If you have any queries, please reach out to us:

Enquiry Now greengares@gmail.com
Technical Parameters
Feature Specification
Production capacity 150-260 times/min(Mechanical speed max 260 times)
Paper Convey Width 970-300mm , 1220-300mm , 1320-300mm , 1470-300mm
Maximum cutting size 950 x540mm;950 x640mm , 1200 x640mm , 1200 x750mm , 1450 x750mm
Total Weight 9T; 9.5T(heavy duty), 10T , 12T , 14T
Overall Dimension 4.35 x 2.1 x 1.85m , 4.350x2.300x1.85m
Suitable Material 100-800g/m2 white cardboard, PE coated paper, Kraft paper.etc PE 100-800
Total Power and Air source 14KW; 0.6Mpa; 0.3m³ /min; 380V/50HZ (other voltage can be customized)
Max Roll paper diameter 1800mm
Cut Precision ± 0.10mm
