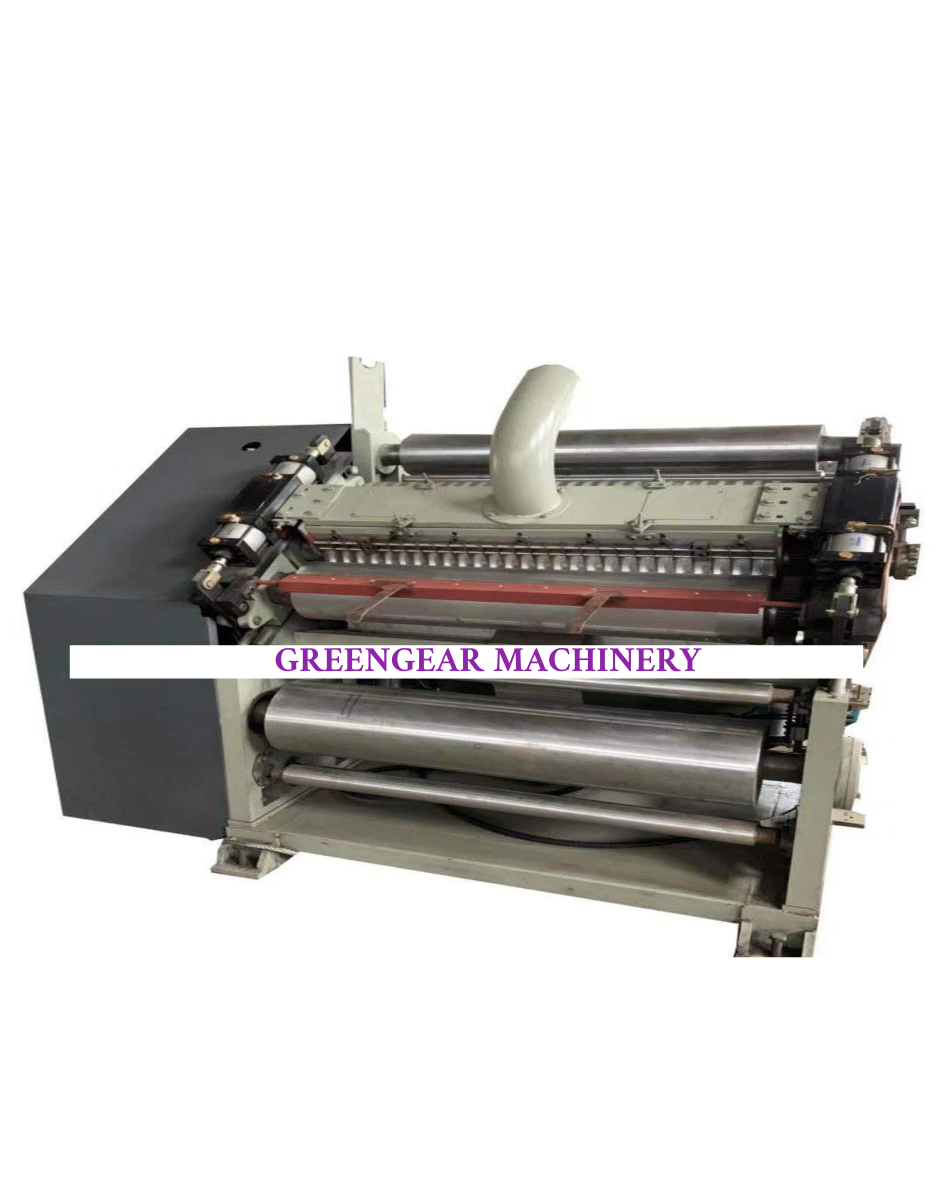

Corrugated roller material: 50#Chromium Molybdenum Alloy Steel Corrugated roller wall thickness: 50mm Pressure roller material: 45#Steel quench treatment Pressure roller wall thickness: 42mm Paper guide mode: Vacuum adsorb (outside adsorb) Adopt pneumatic adjustment for upper corrugated roller, pressure roller and gluing roller. Gluing part is supplied glue by gluing pump. Corrugated roller precision grinding. It is processed by grinding teeth.
-Electrical Unwinder: Magnetic powder correction, electric shaft unwind stand is finished fasten and moving web base paper by motor.
Technical Parameters:
| Max. paper width | 950mm |
| Max. base paper Dia. | 1300mm |
| Power | 1.5KW |
| Overall dimension | 1800x2200x1400mm |
-Hydraulic Rewinder(double sides) : Form a complete set of cup corrugating machine. Non-stop collecting, ensure main machine equation work.
Technical Parameters:
| Max. paper width | 950mm |
| Max. base paper Dia. | 1300mm |
| Power | 5.5kw |
| Overall dimension | 1600x3300x1500mm |
-Steam Can 54KW
-Centrifugal fan(7.5KW)
